SCADA control and monitoring, to your needs
Cachelan does custom SCADA setups to meet utility grid connect requirements. This includes Distributed Generation Monitor and Control requirements by IPPs. Regardless of what your local distribution company requires, we can ensure your system includes the appropriate monitoring and shutdown/restart commands to your specifications.

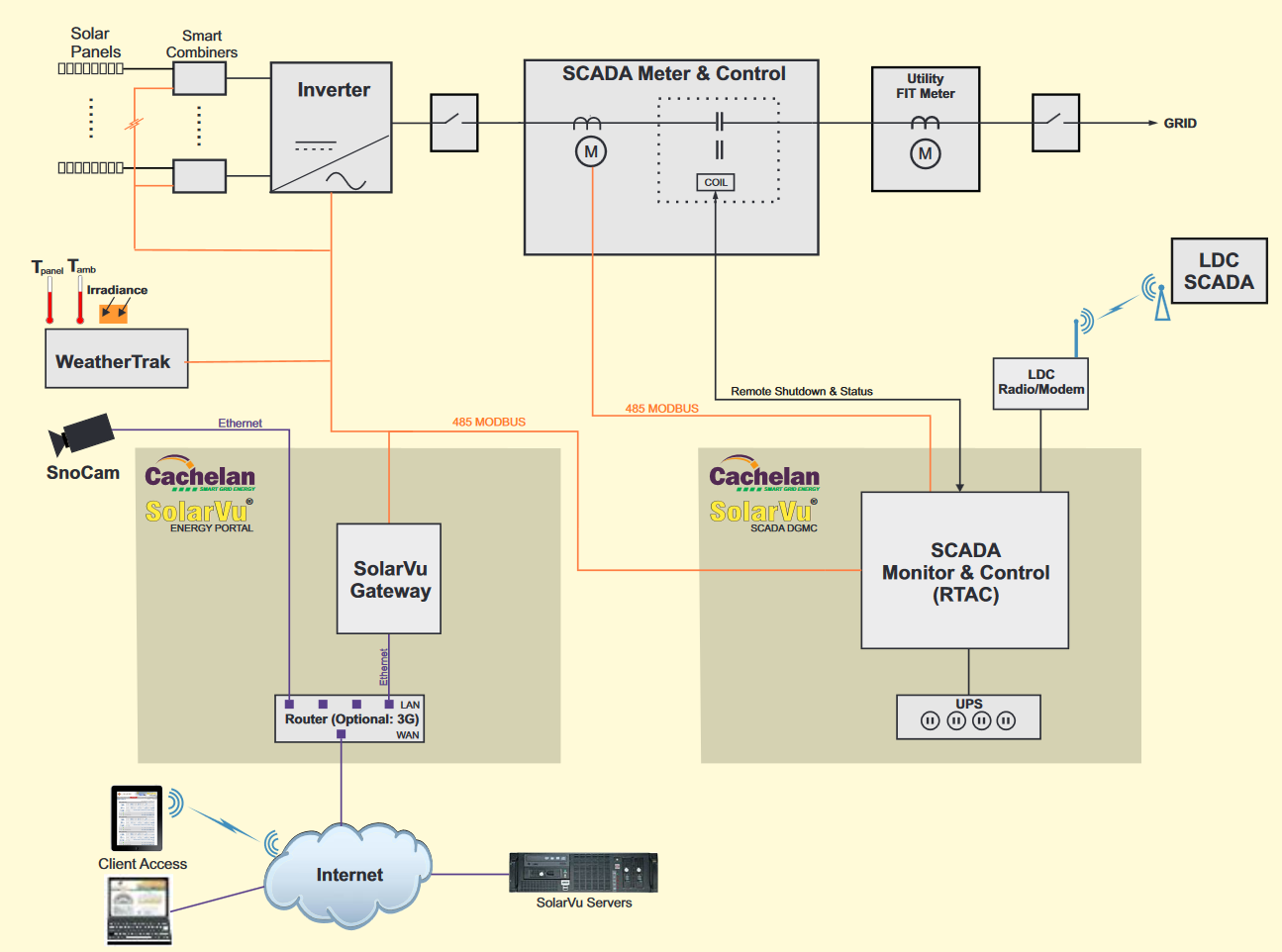

Diagram of Typical SolarVu® LDC SCADA interface to DG system
![](../sv2/images/SCADA-diagram.png)
As more distributed generation is added to the grid, LDCs (local distribution companies) are increasingly including remote DG M&C (distributed generation monitor and control) requirements to IPPs as a condition for connection in the CIA (connection impact assessment). This is particularly true of systems above 50kW in heavily loaded urban areas. As renewables become a larger portion of total supply, LDCs need to be able to remotely monitor DG sites and issue shutdown/restart commands from their SCADA (supervisory control and data acquisition) systems.
Contact us with any questions or inquiries!

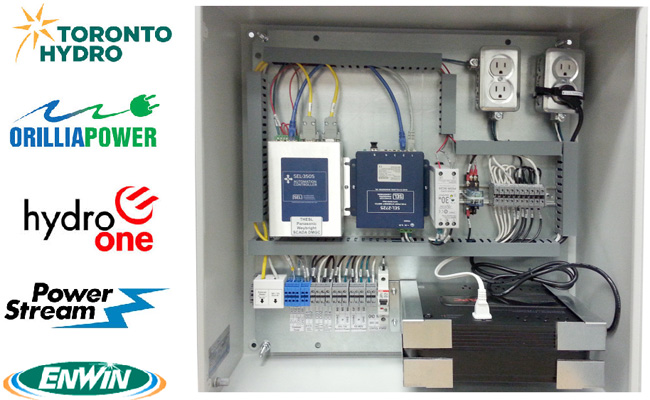

This requires additional site equipment that can interface to utility protocols DNP3 and IEC61850 using different communication media such as fiber, WIMAX, proprietary radio and 3G cellular as specified by the LDC. Cachelan can design, program and commission this additional equipment to meet each LDC DG M&C requirements necessary for successful grid connection permission.
Many LDCs require a connection to their SCADA system as a condition in the CIA FIT contract. Each utility has different specifications ranging from simple metering to remote shutdown. Newer inverters include remote control capability for power factor correction and power output level control. A SCADA interface can be supplied by Cachelan to meet all requirements leading to successful grid connection either as standalone equipment or included with an NRGpilot portal.
